Automating Filament Changes in Lights-Out 3D Printing

Automating Filament Changes in Lights-Out 3D Printing

A demonstration of robotic filament swaps in a compact cell - a key step toward fully integrated, lights-out additive manufacturing.

3D Printing

Automation

Gripper

OVERVIEW

With full automation of both bed handling and filament swaps, our system prints continuously without human intervention.

With full automation of both bed handling and filament swaps, our system prints continuously without human intervention.

With full automation of both bed handling and filament swaps, our system prints continuously without human intervention.

Lights-Out FDM Printing Just Became a Reality

In large-scale additive manufacturing, automation is the difference between a pilot farm and a real factory. Bed handling, part removal, and job scheduling are now common practice. Yet one critical step often remains manual: changing filament.

It sounds minor, but every spool that runs out can halt production, require operator time, and introduce errors. For a high-volume or multi-material workflow, that means downtime adds up quickly.

At DHR Engineering, we wanted to close this gap. Our automated farm already runs more than 40 Bambu Lab printers with a custom robot that manages bed loading and unloading. The next question was simple: could the same system handle filament swaps too?

To find out, we built a small demonstration cell - one robot arm, three printers and custom spool containers. The result is a workflow where every stage of FDM is automated, from bed handling to material exchange, all running continuously without human intervention.

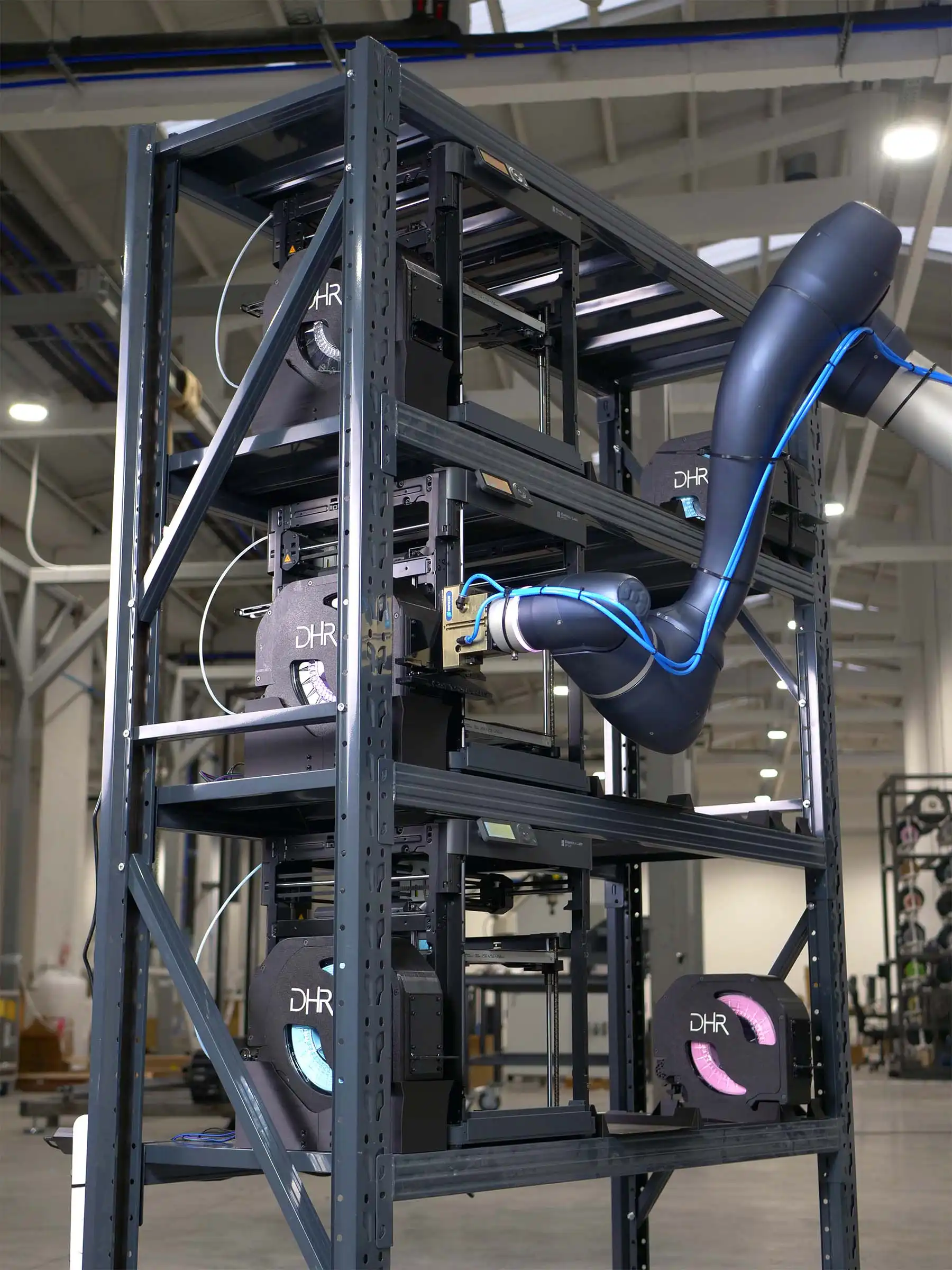

Bambulab Automation
Bambulab Automation
Bambulab Automation

Problem

The Hidden Bottleneck in Automated Printing

Even in well-equipped farms, filament management is usually a manual task. Operators must watch spool levels, pause machines, swap filament, purge, and restart jobs. Each of those steps introduces friction.

The impact is felt most in:

  • High-mix, low-volume runs: frequent material changes mean frequent stops.

  • Overnight production: a single empty spool can halt a job until morning.

  • Scaling farms: adding more printers only multiplies the manual workload.

This is why filament management has become the defining challenge for scaling FDM into true lights-out manufacturing. Without solving it, machine utilization will always lag behind potential capacity.

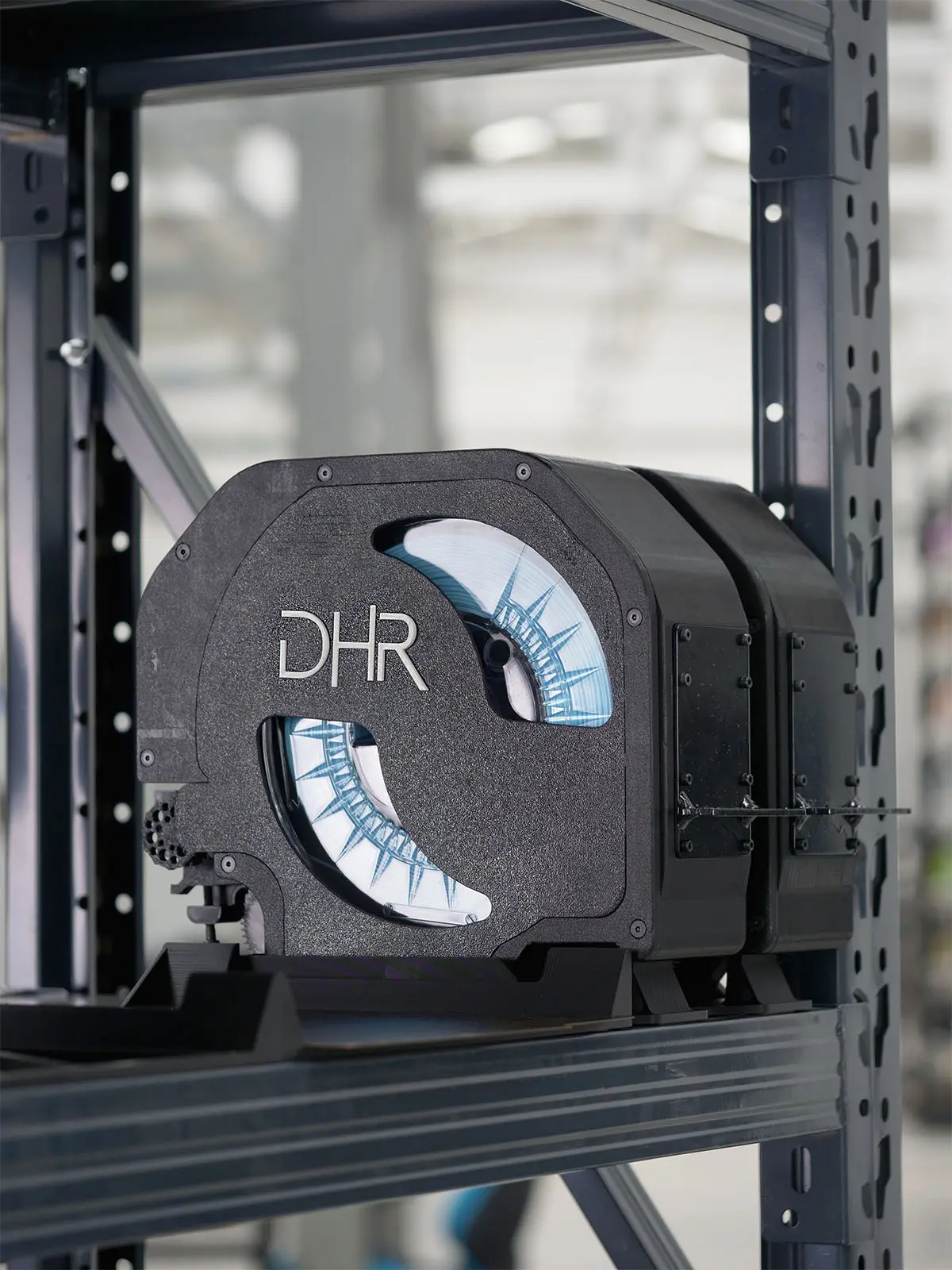

Filament Box
Filament Box
Filament Box

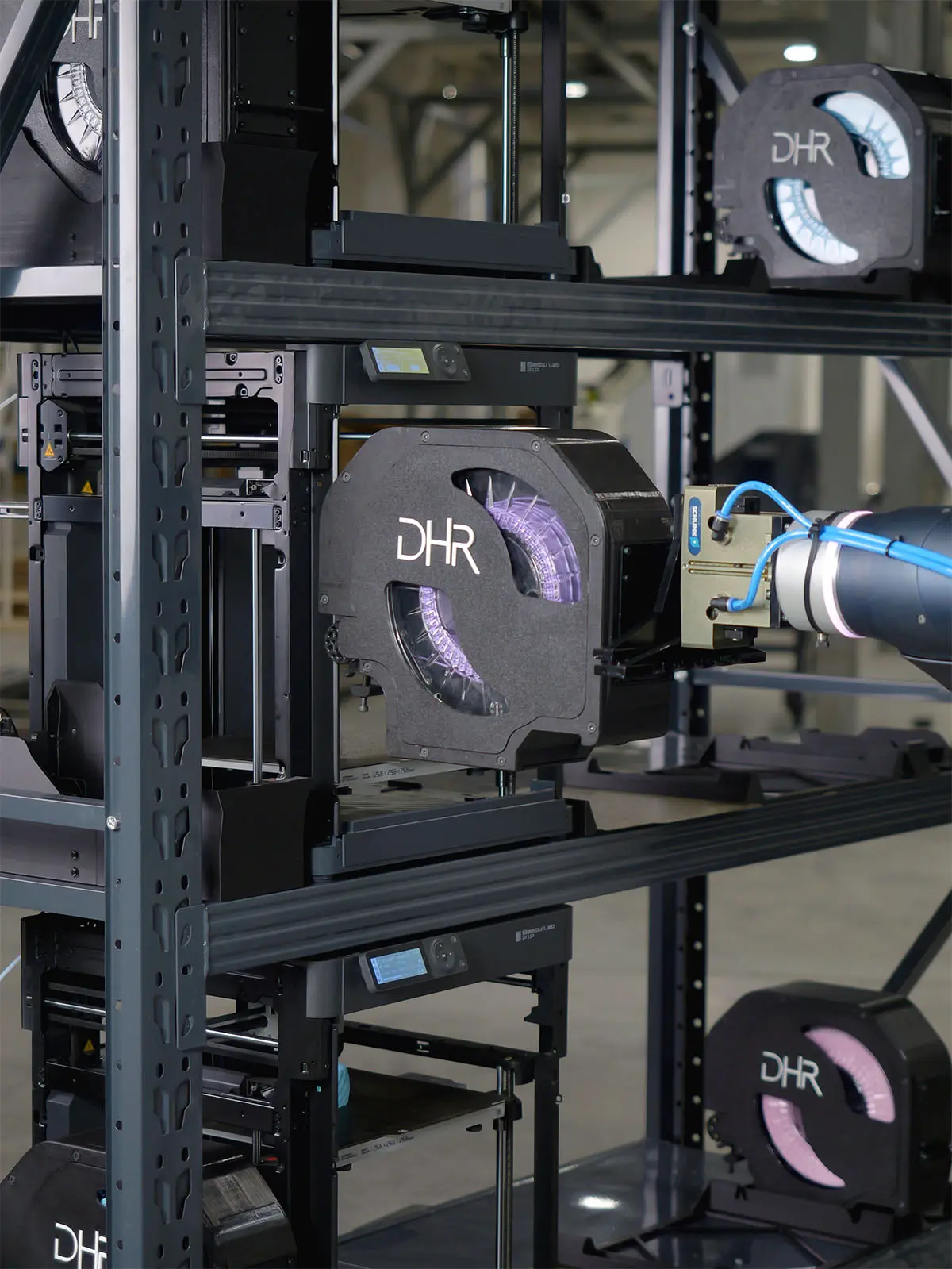

Filament Box in action
Filament Box in action
Filament Box in action

Solution

Robotic Filament Swapping, Custom Docking, and Modular Architecture

Our approach was to standardize the process so a robot could repeat it reliably.

The demonstration cell integrates:

  • Custom filament containers: Each spool is preloaded in a motorized housing designed for robotic handling.

  • Docking stations: The robot places the container into a docking station mounted near the printer. From there, the filament is automatically pushed into the tube and loaded into the printer.

  • Universal gripper: The same robot also loads fresh build plates and removes completed ones with the printed parts.

  • Orchestrated job flow: Our farm software triggers prints across the rack.

By separating the “smart” mechanics into containers and docks, we keep the printers themselves simple while giving the robot a repeatable task. The design also anticipates integration with a custom storage unit, which will store and retrieve containers on demand.

This is paired with:

  • Theoretical infinite filament storage: Spools are swapped in and out automatically, keeping jobs running.

  • Multi-material flexibility: Supports switching between materials mid-shift.

  • Modular, scalable design: The system can grow without re-engineering.


Switching Filament Boxes
Switching Filament Boxes
Switching Filament Boxes

CONCLUSION

Continuous Production and a Clear Path to Scale

In our test cell, the robot successfully completed sequences of bed loading, part removal, filament loading, and unloading — all without human intervention. This confirmed that material changes can be automated with the same consistency as plate handling.

The achievement marks an important step forward, but not the endpoint. The next integration will connect these containers with a vertical lift module, enabling centralized material storage and farm-wide orchestration. Together, these systems move additive manufacturing closer to true lights-out scalability, where production flow is limited by machine capacity rather than operator availability.

We’re continuing to expand these capabilities across our print farm. If you’d like to discuss how automated filament management could apply to your operation, let’s connect.

See it in Action

See it in Action

See it in Action

See it in Action

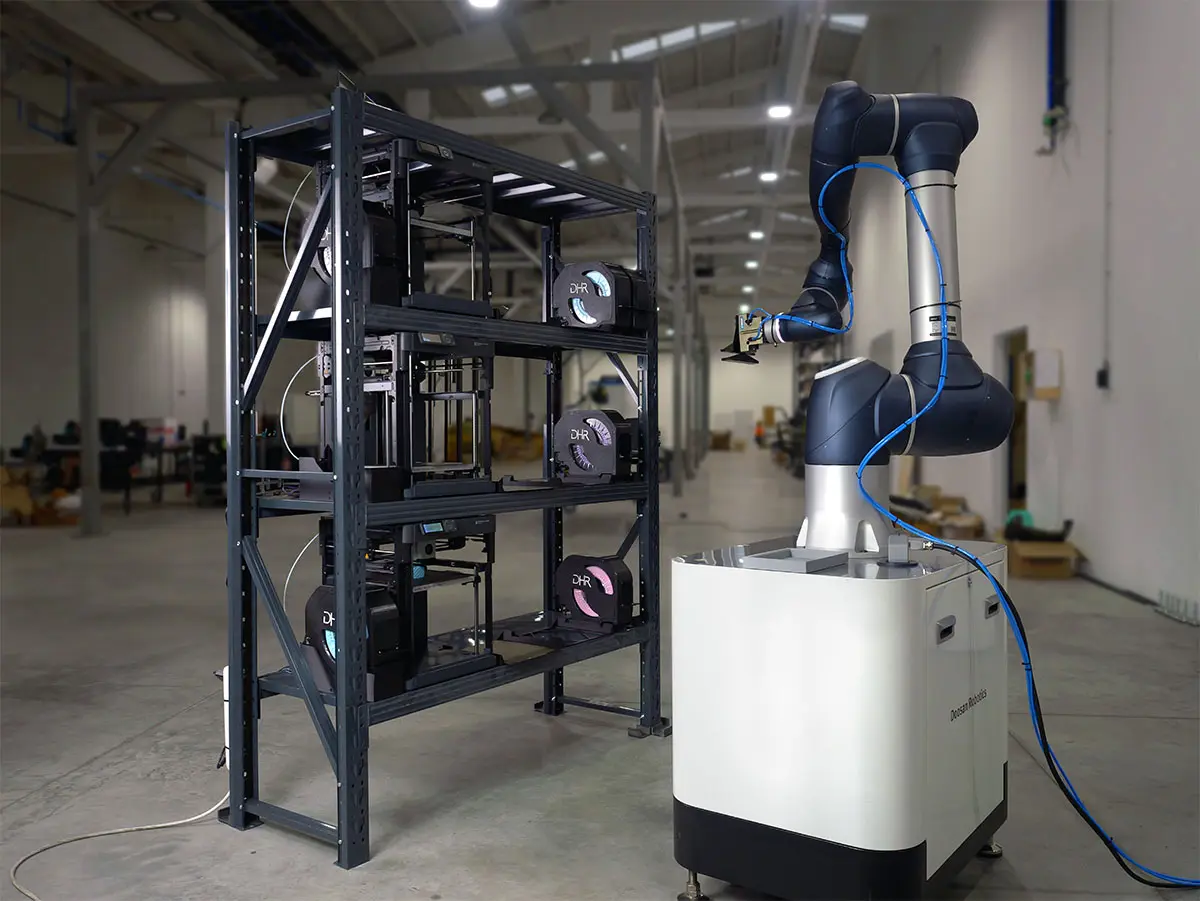

FDM 3D Printing Automated Farm
